Marantz AMP 10 16 Channel Power Amplifier

$13,999.00 Inc. GST

In stock

Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theatre. Marantz HDAM, Current Feedback Amplification, and balanced line level input. Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world’s most demanding home theatres. Excellence Only Begins with Performance
  • PEERLESS PERFORMANCE

    Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
  • TECHNOLOGY LEADER

    AMP 10 is engineered using best in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.
  • EXQUISITE DESIGN

    A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

BELIEVE IN QUALITY

ULTIMATE PERFORMANCE

We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.

STYLE

Excellence is heard and seen. AMP 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.

CUSTOMISABILITY

Thoughtfully curated connectivity options and selectable amplifier modes let you make AMP 10 your own.

POWERFUL

AMP 10 gives you 16 channels of commanding power, deftly nuanced.

MULTI-ROOM / CI

IP Control / RS232 Control / Web Control / App Control No / Yes / No / No
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Input/ Output 1 / 1

OTHERS

Front Display Level Meter
Firmware Update by Network / USB / RS232C No / No / Yes
Auto Power off Yes

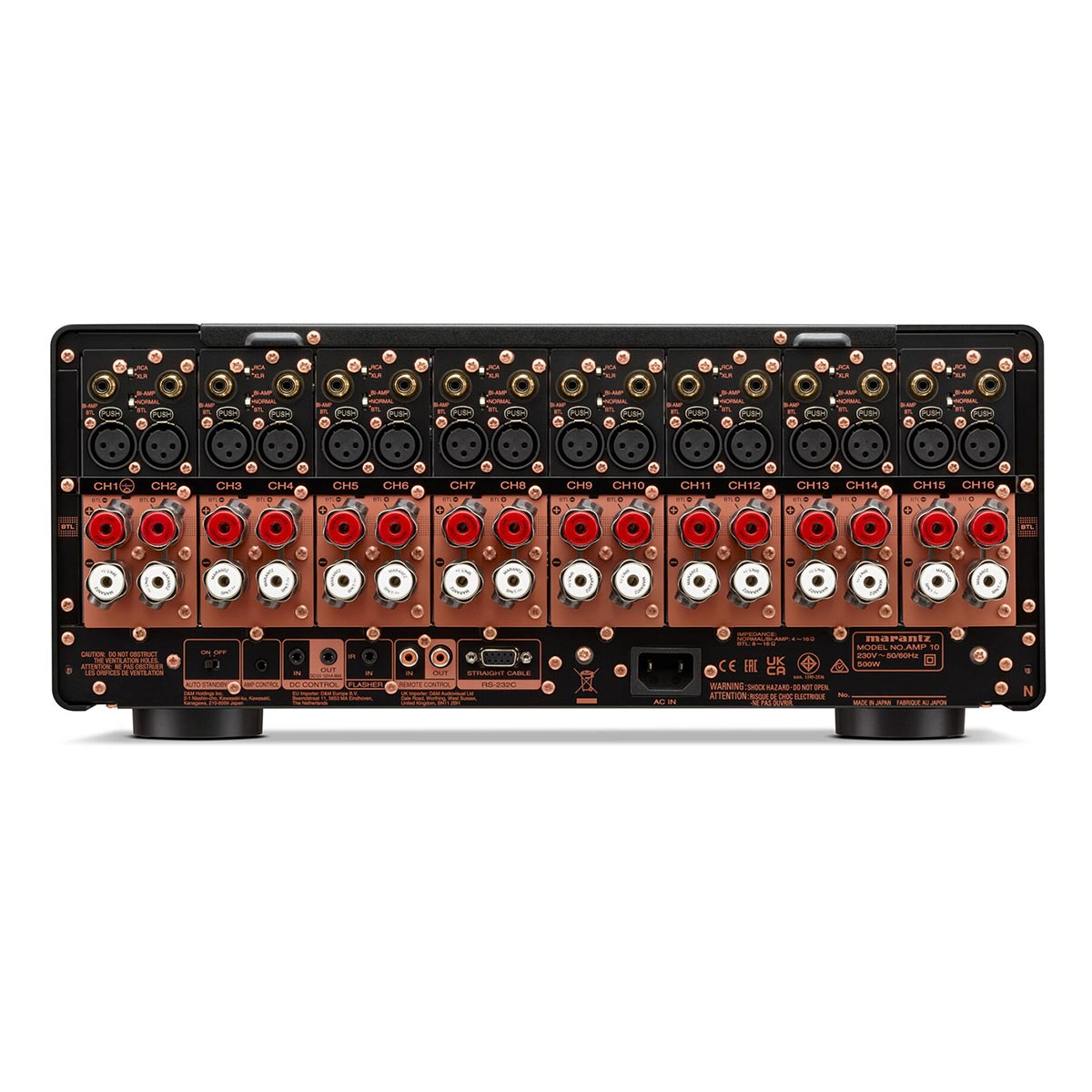

INPUTS/OUTPUTS

Main Amplifier in Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker Terminal: Gold plated screw / regular screw Brass type (same as MODEL 40n)
Number of Speaker Terminals 16
Bi-Amp Drive /BTL Drive Yes / Yes
Level Meter Yes
Chasiss Copper Plated

SPECIFICATIONS

Number of poweramps 16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
70% Guarantee(Normal/Bi-Amp/BTL) Yes(w/Yes JP)
100% Guarantee(Normal/Bi-Amp) Yes

GENERAL

Metal Front Panel Yes
Pre-Programmed / Learnable / LCD Display No / No / No
Power Consumption in W 500W
Power Consumption No-Sound (ECO on/off) in W No / 140W
Standby Consumption in W 0.2
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm
No x No x No
( No x No x No )
【 17.4 x 19.2 x 7.4 】
Weight in lbs. 43.7
What’s in the box Main unit, quick start guide, AC cord,
Amp control cable, Remote control cable,
SP terminal wrench
UPC code 747192137519
