Marantz AV 10 15.4 Channel AV Preamplifier / Processor + Bonus Audyssey Mic & MultEQ-X Software

$13,990.00 Inc. GST

In stock

Reference 15.4 Channel Home Theatre Pre-Amplifier/Processor

Reference 15.4 Channel Balanced Processor with Dolby Atmos, DTS:X Pro Auro 3D, IMAX Enhanced and 8K Ultra HD, and HEOS® Built-in streaming. AV 10 is a reference-level AV processor.

Excellence Only Begins with Performance

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world’s most demanding home theatres.

Key Features

  • Peerless performance: Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
  • Technology leader: AV 10 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
  • Exquisite design: A modern expression of timeless design principles, AV 10 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

MULTICHANNEL SURROUND

DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / Yes
DTS Neo:X / DTS Neural:X No / Yes (15ch)
DTS Virtual:X Yes
IMAX Enhanced Yes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music Yes / Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround No / Yes
Auro 3D Yes
360 Reality Audio / MPEG H Yes / Yes
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 15.4

SOUND ENHANCEMENTS

Copper Plated Chassis Yes
Power Transformer: Toroidal / EI Yes / No
Current Feedback Topology Yes
Hyper Dynamic Amplifier Modules (HDAM) Yes
Pure Direct Yes
Gold plated RCA terminals Yes
Clock Jitter Reducer Yes
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes
Dirac Live upgradability Yes
Compressed Audio Enhancer: MDAX2 Yes

NETWORK

HEOS Multi-room and Streaming Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Network Audio Sharing Yes
Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless Playback Yes (FLAC, WAV ,ALAC ,DSD)
AirPlay Audio Streaming Yes (AirPlay2)
Internet radio Yes (TuneIn)
Spotify* Yes (connect)
Pandora Yes
SiriusXM Yes
Other Streaming Services * Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon Tested Yes
Compatible with Remote APP for Smart Phones Marantz 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes

HDMI

HDMI Inputs: Back / Front 7 / No
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / 1
HDMI to HDMI Scaling 1080P/4K to 8K
GUI Overlay on HDMI Yes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes / No
Enhanced ARC Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / No
3D Signal Pass-Through Yes
8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI pass-though in standby mode Yes
Picture Adjust / Noise Reduction No / No
CEC Yes
DSD Audio Capability Yes
Audio Return Channel Yes
Auto LipSync Yes

MULTI-ROOM / CI

HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout No / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 2
HDMI Diagnostics Yes

OTHERS

Auto Speaker Setup by Microphone Audyssey MultEQ XT32
Dirac Live (upgrade)

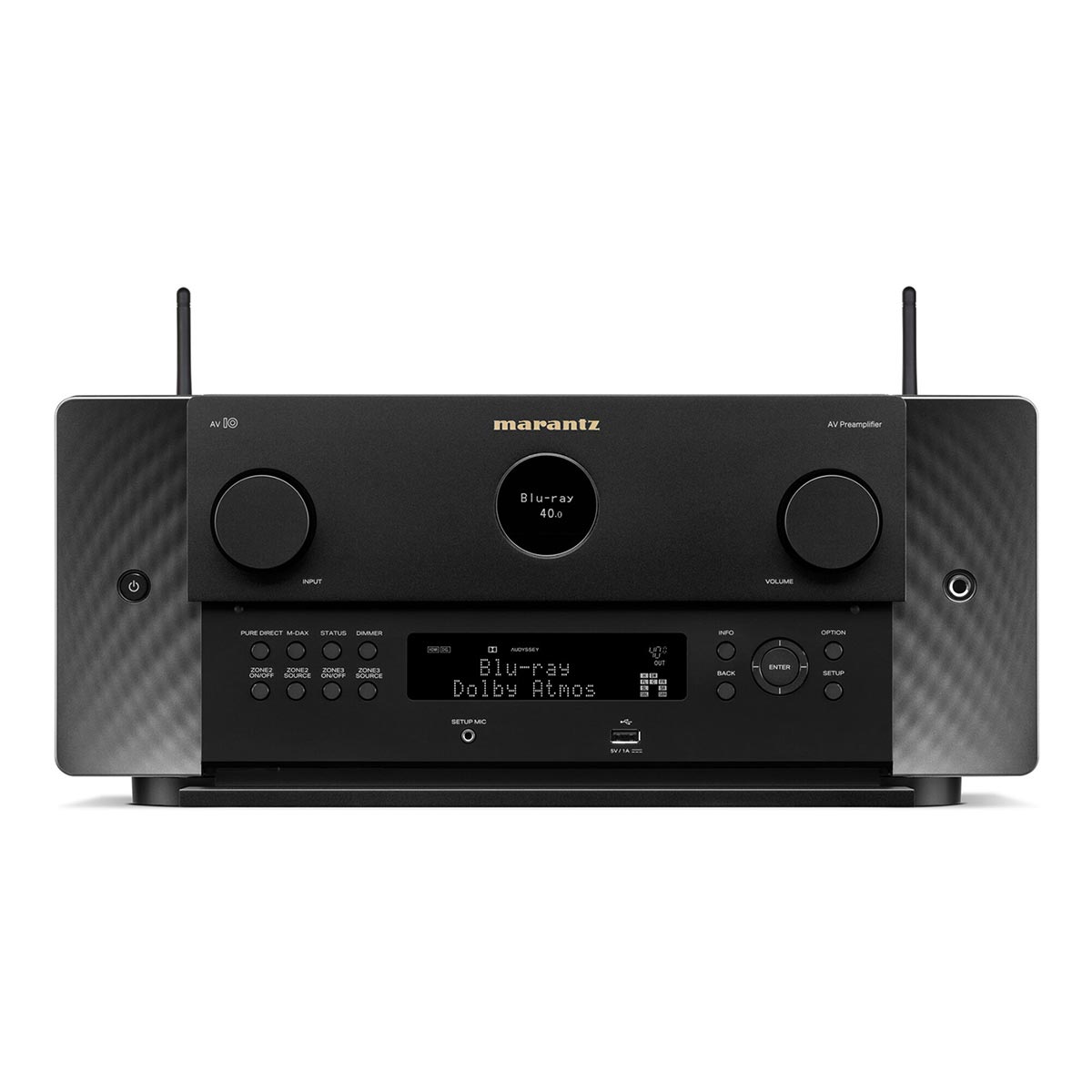

Front Display 2 line FLD + port hole OLED
Graphic User Interface – GUI Modern HD GUI
GUI Languages 3
Setup Assistent Yes
Smart Select Yes
Firmware Update by Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
Auto Power off Yes
Sleep Timer Yes

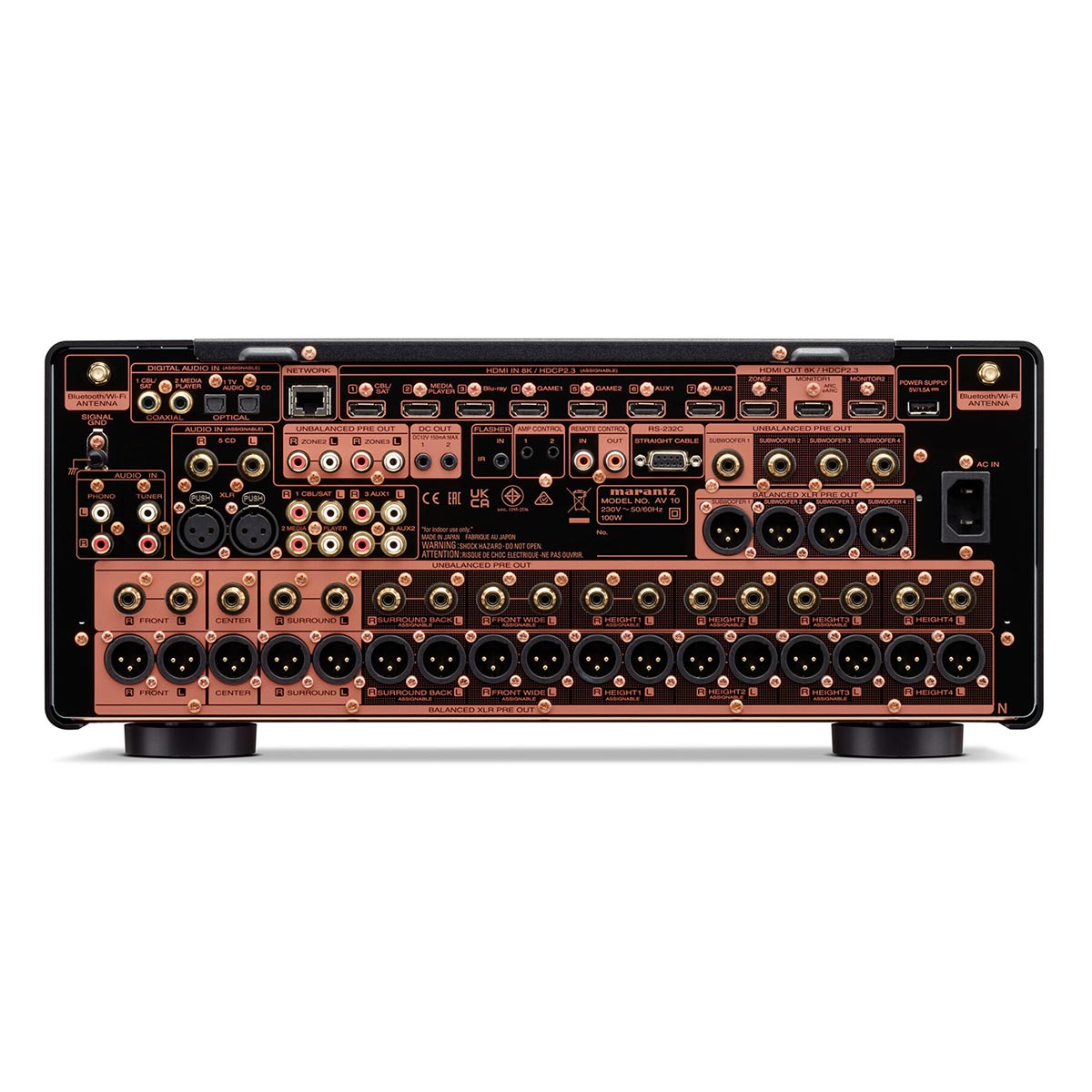

INPUTS/OUTPUTS

Composite In / Out No / No
Component In / Out No / No
HDMI In / Out 7 / 3
Multi-Room Video Out: Video / HDMI No / Yes
Analogue In / Out 5 (1x XLR) / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: analog / digital 2 / No
Multichannel Pre Out Yes (17.4 RCA & 17.4 XLR)
Subwoofer Out 4 (independent)
Speaker A / B assignable pre out
Bi-amp drive assignable pre out
Multi-Room Speaker Terminal pre out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes

GENERAL

Metal Front Panel Yes
System Remote Control RC047SR
Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes
Power Consumption in W 90
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm
17.4 x 19.8 x 7.4
( 17.4 x 19.8 x 9.9 )
【 17.4 x 19.0 x 7.4 】
Weight in lbs. 37.0
What’s in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
