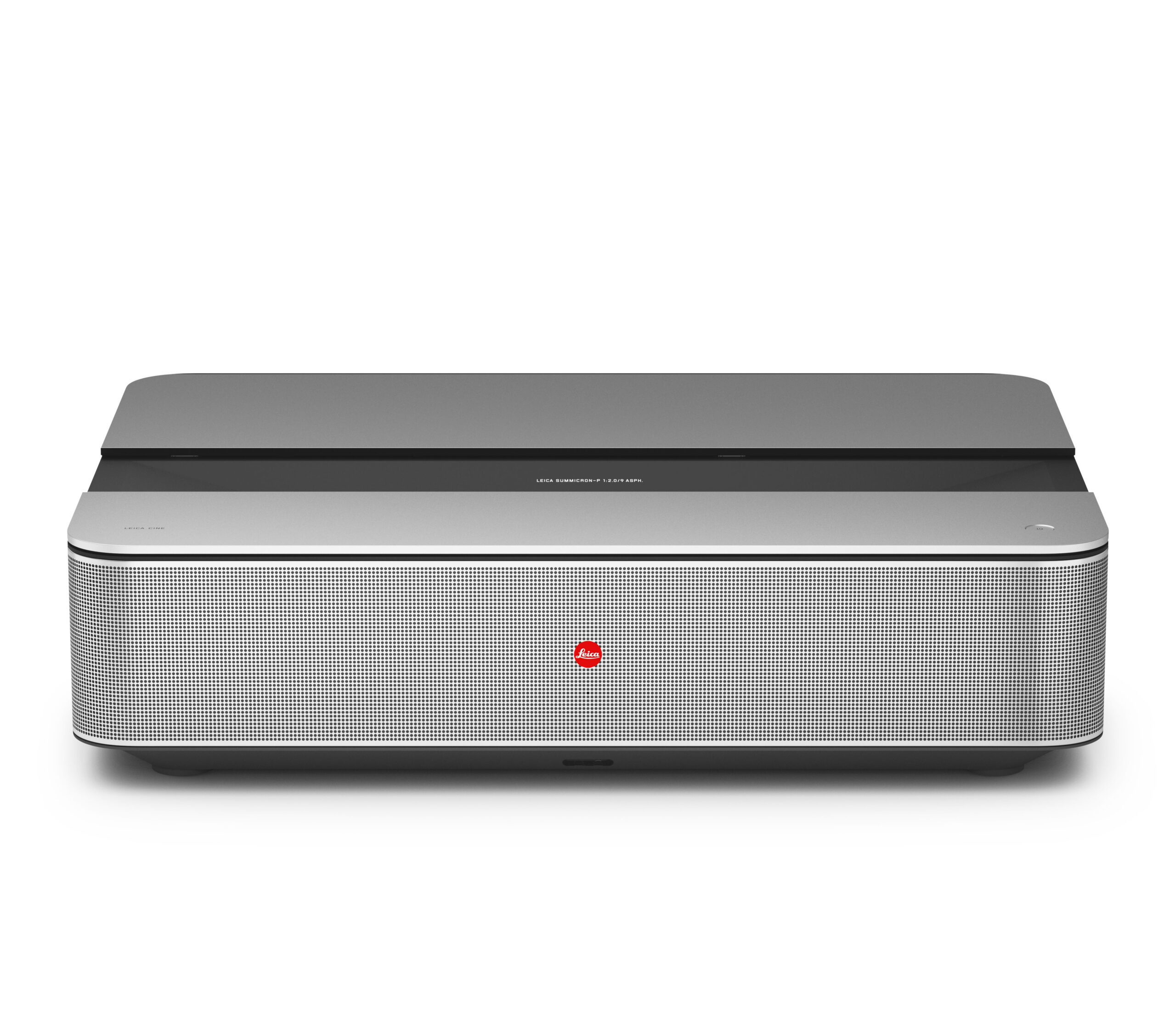

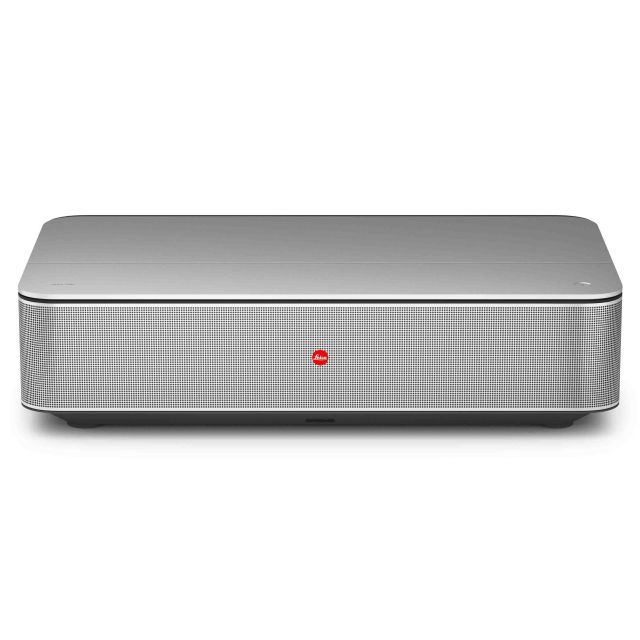

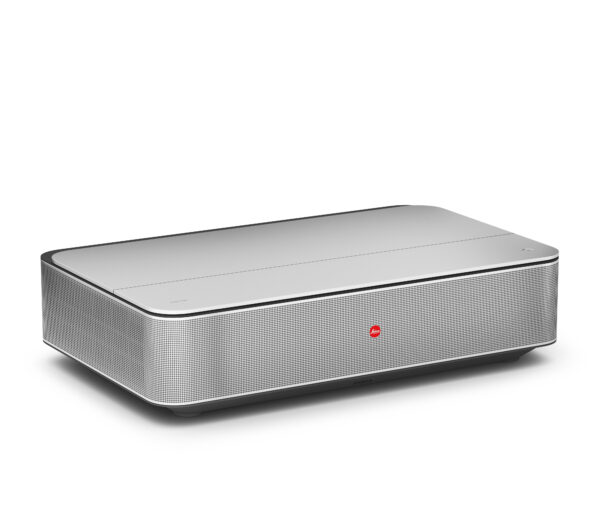

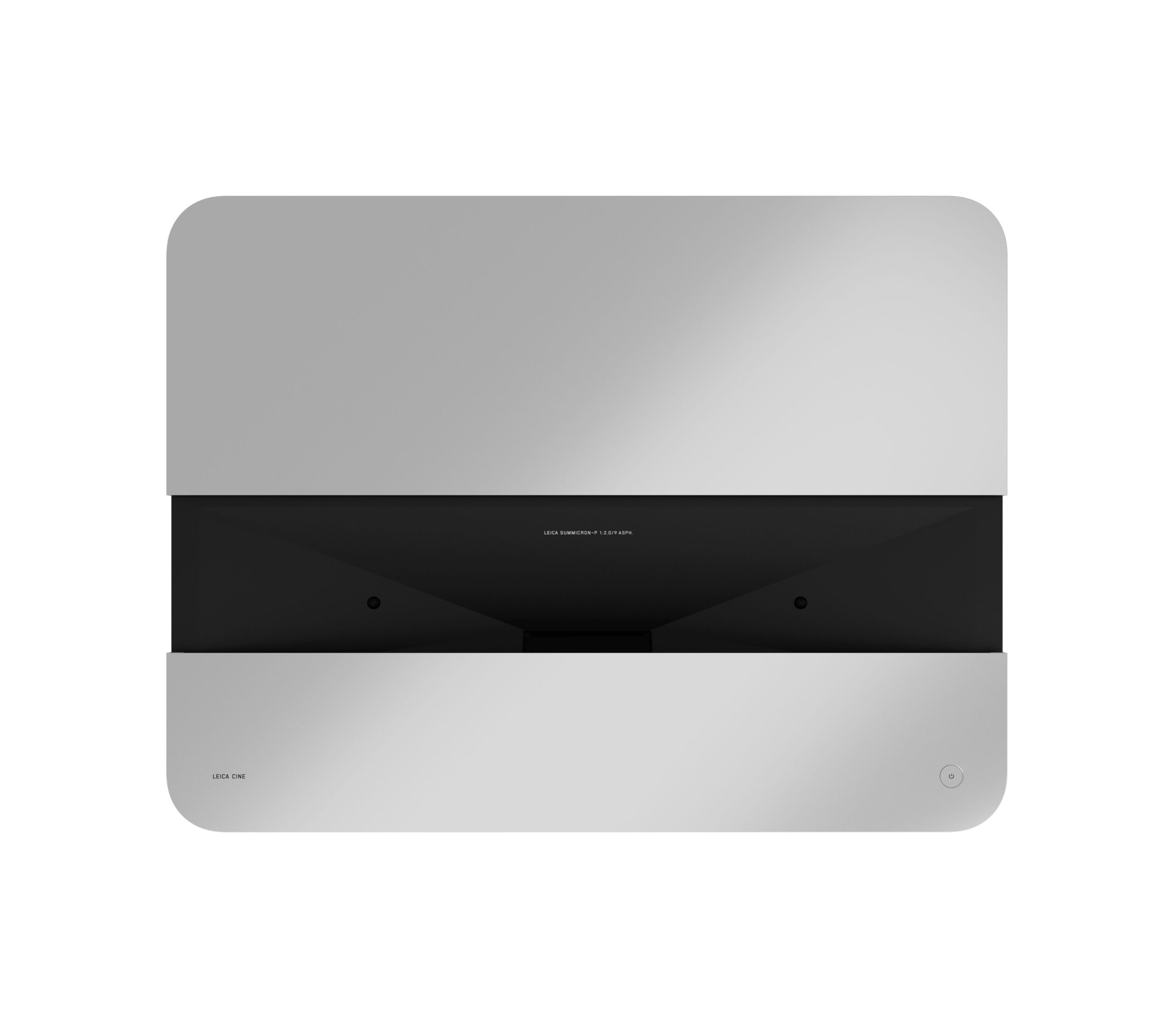

Leica Cine 1 4K Ultra Short Throw Laser Projector

There’s a new way to watch TV. The picture, the sound, the atmosphere: It’s the attention to detail that transforms a film into an unforgettable story and a projection into a true home cinema experience. The interplay of time, space, reality, and fiction all come together with the latest technologies, offering maximum connectivity and the highest standards in form and function. Triple RBG-laser, Leica Image Optimization and the Leica Summicron lens enables unique visual worlds to project on a screen from the shortest distance, available in 100″, and 120″. The puristic, linear design follows a timeless, reduced design language and saves space in any room, thanks to the ultra-short-throw lens. Intelligent functions such as the smart TV interface, including voice control, triple tuner, Apple AirPlay or direct access to streaming platforms, make this Laser TV an all-in-one entertainment system for a full-spectrum home cinema experience. Leica Cine 1 is a statement piece that celebrates the love of film and finally makes an authentic home cinema reality.

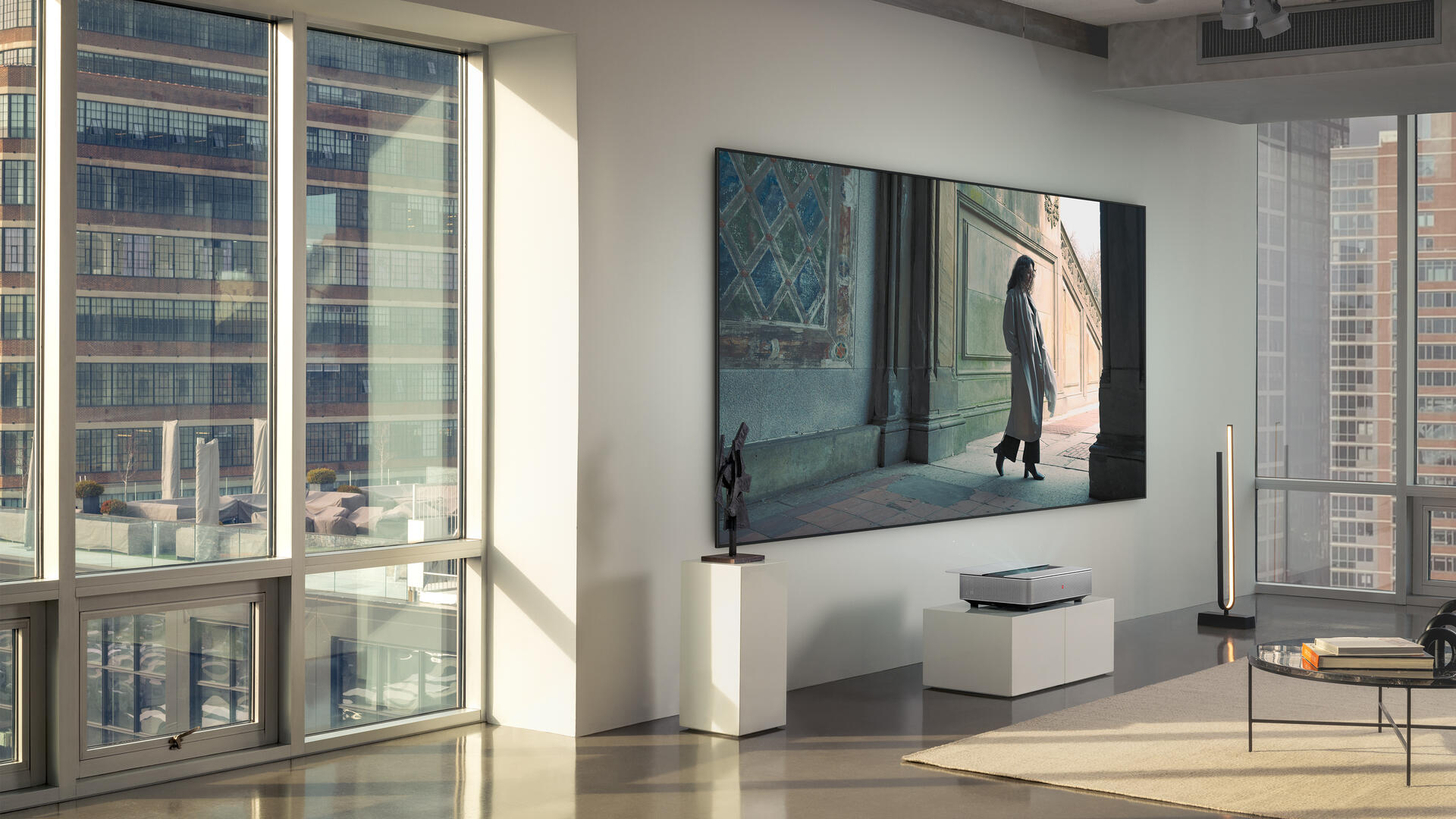

Turn a room into a feeling

Leica Cine 1 combines innovative technology and outstanding engineering excellence with iconic, purist design; resulting in a high-precision product. The smart Laser TV mesmerizes with 4K resolution, crystal-clear Dolby Atmos® surround sound, and Dolby Vision for intense colour depth and sharp contrasts right to the edges. Uncompromising quality – down to the smallest detail.

Leica Summicron Lens

The sophisticated Summicron lens with four aspherical lenses is manufactured according to Leica standards. Fixed to the image size it ensures consistently high imaging performance. For the first time, the unmistakable character and outstanding quality of a Leica image can be experienced in 4k quality in moving images up to 120 inches.

MODEL NAME	LEICA CINE 1 I 120	LEICA CINE 1 I 100
	EU: 30189	EU: 30169
	GB: 30190	GB: 30170
Order No.	AUS: 30194	AUS: 30188
	AE: 30191	AE: 30171
	SG: 30196	SG: 30195
Projection Size	120″	100″
DLP	0.47″ XPR	0.47″ XPR
Resolution	3840x2160px (4K)	3840x2160px (4K)
Upscaling	Yes	Yes
Gaming Mode	Yes, Latency < 60 ms 4K@60Hz	Yes, Latency < 60 ms 4K@60Hz
Lumen Output	Approx. 3000 lm	Approx. 3000 lm
Dynamic Contrast	Approx. 2 Mio. :1	Approx. 2 Mio. :1
Contrast Ratio	Approx. 1000:1	Approx. 1000:1
BT.2020 Coverage	> 100 %	> 100 %
HDR Modes	Dolby Vision® / HDR10 / HLG	Dolby Vision® / HDR10 / HLG
Leica Image Optimization (LIO™)	Yes	Yes
Throw Ratio	0.25	0.25
Smart TV	VIDAA 6.0	VIDAA 6.0
Light Source	Direct Triple RBG-Laser	Direct Triple RBG-Laser
Power Consumption	Max. 300W / 0.5W	Max. 300W / 0.5W
Standard Mode / Standby
Voltage	120V – 240V	120V – 240V
Dimensions LxWxH (console only)	600 x 378 x 149 mm	600 x 378 x 149 mm
Weight (console only)	Approx. 15.1 kg	Approx. 15.1 kg
TUNER:
Tuner	DVB-T2 / C / S2 / S with EPG	DVB-T2 / C / S2 / S with EPG
Single Cable Distribution DVB-S	Unicable 1 / Unicable Jess	Unicable 1 / Unicable Jess
DiSEqC	DiSEqC 1.2	DiSEqC 1.2















INTERFACES:



HDMI	2x HDMI 2.1 / 1x HDMI 2.0 Type (1x eARC Support)	2x HDMI 2.1 / 1x HDMI 2.0 Type (1x eARC Support)
USB	2x USB (1x USB 2.0 & 1x USB 3.0)	2x USB (1x USB 2.0 & 1x USB 3.0)
USB Recording	Yes	Yes
LAN (Ethernet RJ45)	1x	1x
Antenna in (RF Tuner)	2x	2x
S/PDIF	1x Optical (Toslink)	1x Optical (Toslink)
Common Interface (CI+)	1x	1x
Earphone/Audio Output	1x	1x
AUDIO:
Output Power	2 x 25 Watt	2 x 25 Watt
Dolby Atmos®	Yes	Yes
Dolby Digital Plus™	Yes	Yes
Channels	4.0	4.0
CONNECTIVITY:
WiFi 6	802.11 AX 2.4 / 5.0 GHz	802.11 AX 2.4 / 5.0 GHz
Works with AirPlay*	Yes	Yes
Bluetooth	Yes (Version 5.0)	Yes (Version 5.0)
Screen Mirroring	Yes	Yes
SMART TV:
Operating System	VIDAA U6	VIDAA U6
Voice Assistant	VIDAA Voice	VIDAA Voice
Web Browser	Yes	Yes
HbbTV	Yes	Yes
EPG	Yes	Yes
Child Protection	Yes	Yes
Noise Reduction	Yes	Yes
Physical On/Off Button	Yes	Yes











REMOTE CONTROL:

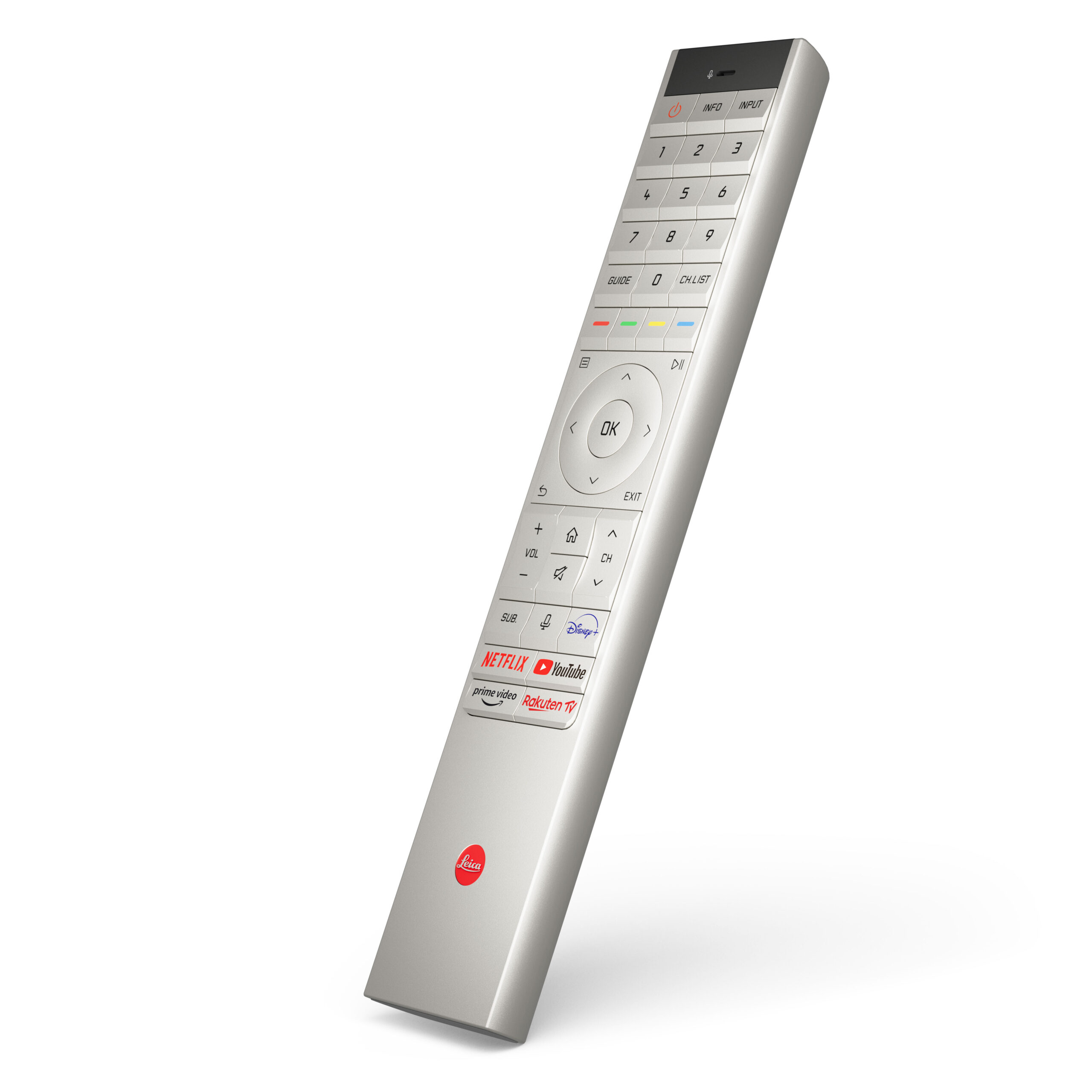

Remote Control	Bluetooth / IR in Aluminum Housing with Microphone	Bluetooth / IR in Aluminum Housing with Microphone
Voice Command	Yes	Yes
FILE FORMATS:



OGG

AV-Container                                          AVI / MP4 / MKV / TS / FLV /



AVI / WMV / MP4 / MOV / 3GP /

AVI / MP4 / MKV / TS / FLV / OGG

AVI / WMV / MP4 / MOV / 3GP /





Video

MKV / MPG / MPEG / VOB /

FLV / WebM / OGM

MKV / MPG / MPEG / VOB /

FLV / WebM / OGM





Audio	WMA / WMV / MP4 / FLAC / MP2 / MP3 / AAC / WMA / WAV	WMA / WMV / MP4 / FLAC / MP2 / MP3 / AAC / WMA / WAV
Image	JPEG / BMP / PNG / GIF / WEBP	JPEG / BMP / PNG / GIF / WEBP
OTHERS:
OTA Software Updates	Yes	Yes
Operation Temperature	+5°C to +40°C	+5°C to +40°C
Storage Temperature	-20°C to +65°C	-20°C to +65°C
Light Source	> 25000 h	> 25000 h
System Noise	< 32 dB (A)	< 32 dB (A)



*AirPlay is the trademark of Apple Inc., registered in the US and other countries.
